The SimmScope SoftwARE

........................
PCBA visual inspection made easy. All systems use the same SimmScope software!

Visual Inspection

  • The machine automatically moves the PCBA or the microscope to the inspection points.

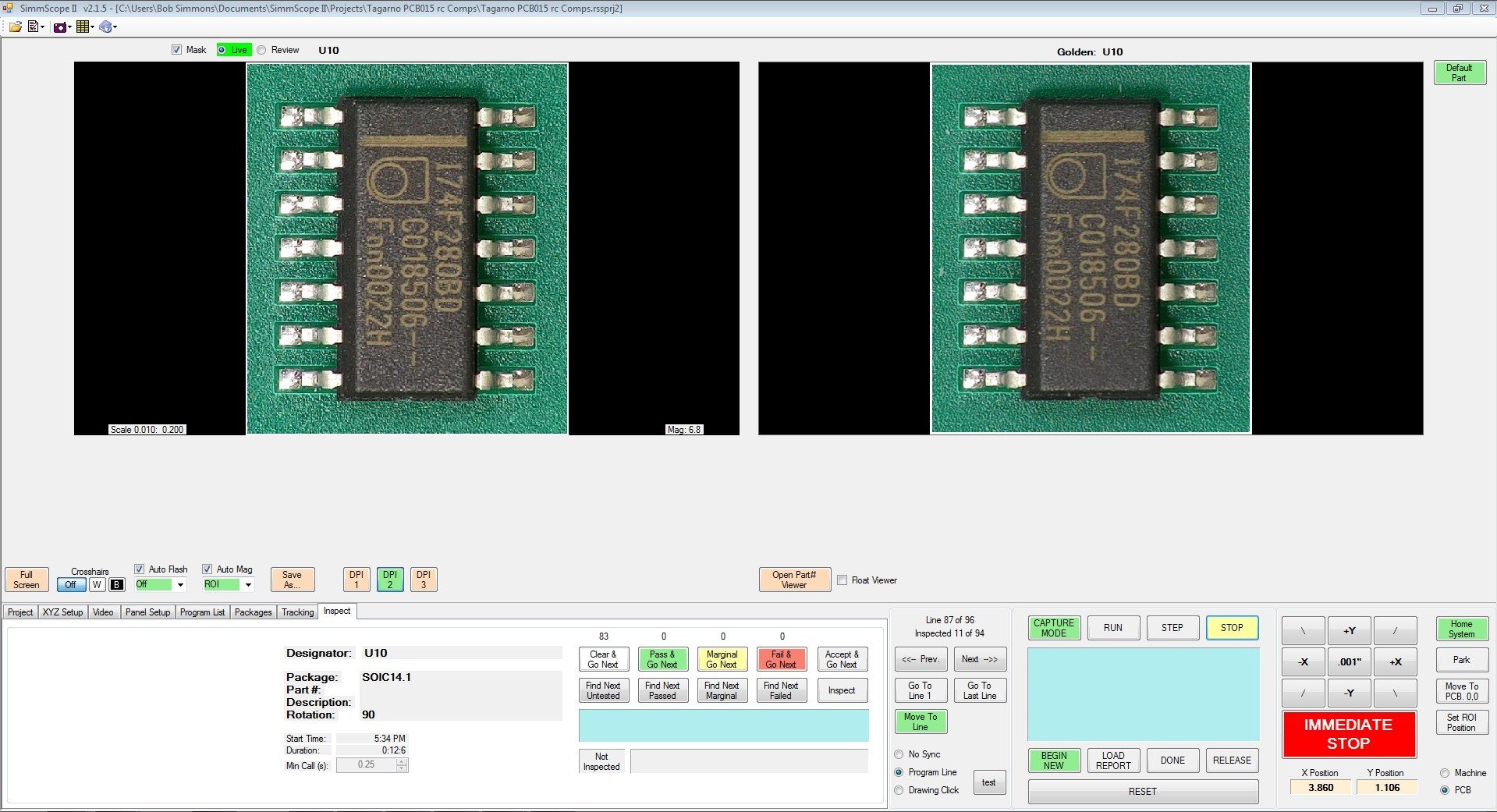

  • The main screen shows the live image next to the reference image for visual comparison by the operator.
  • The operator passes or fails the inspection point.
  • The machine then automatically moves to display the next inspection point.
★★★★★

Image Capture

  • The system automatically saves images of the inspection points to the PC or to the LAN.
  • Images can be reviewed in real time or can be reviewed offline at any time.

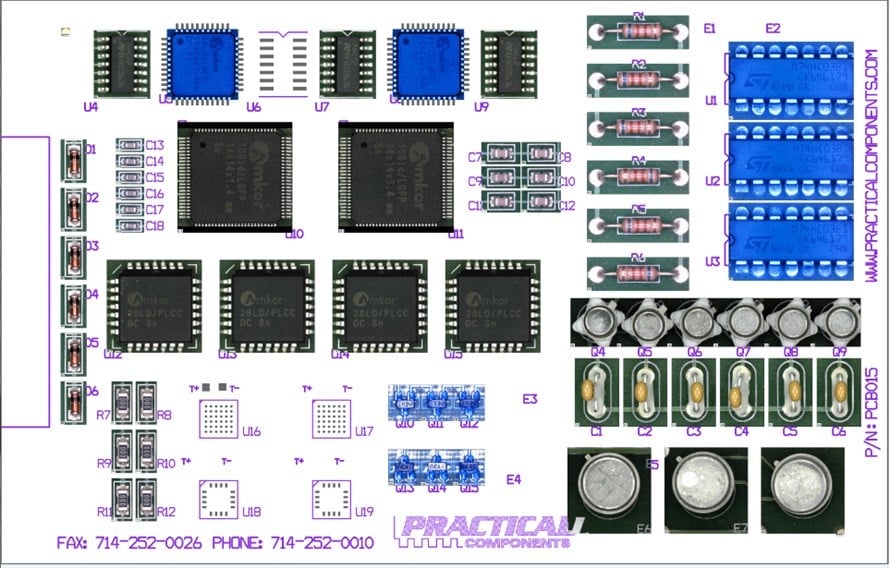

  • The system can stich the images together to recreate an image of the entire PCBA.
  • The images can be saved as part of a report for traceability.
★★★★★

Reporting

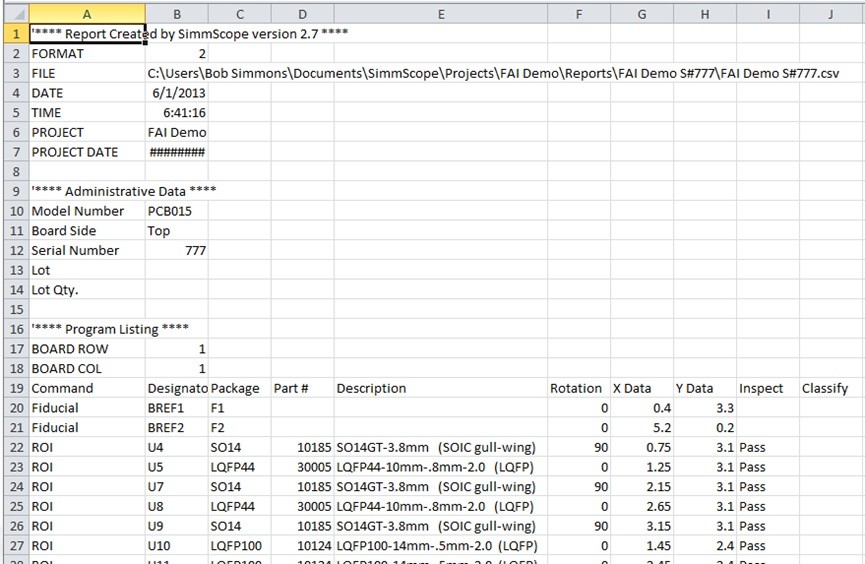

  • A full report can be generated in Microsoft Excel CSV format.
  • Images of all inspection points can be saved as part of the report.
  • The report can be reloaded into the system or offline for offline inspection, review, or report update after rework.
  • The report is MS Excel compatible in CSV format - ideal for data parsing.
★★★★★

PCBA Visual Inspection Made Easy
